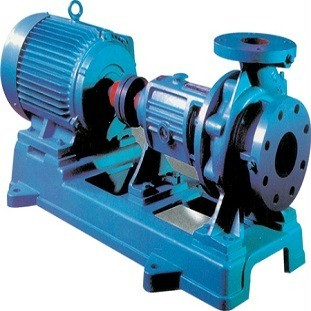

产品名称：IS型单级单吸离心泵（ISR型热水泵ISY型轻油泵）
产品型号：IS型单级单吸离心泵（ISR型热水泵ISY型轻油泵）
产品简介：博力水泵东莞销售中心地址：东莞市万江莞穗大道416-420号，主要负责销售离心泵/管道泵/潜水泵/多级泵等所有产品系列，欢迎电话咨询
详细介绍
[一]产品简介：
本系列是单吸单级悬臂式离心泵，共34个基本型、242个规格。用于汲送清水和无腐蚀性的液体，介质最高温度80℃轴封部位带有水冷却室的，介质最高温度可达103℃(ISR型热水泵)。有软填料密封、机械密封和骨架油封(ISY型轻油泵) 三种轴封形式。根据用户需要，可以应铜叶轮和不锈钢轴的泵。
本产品可以改变制造材料1Cr18Ni9Ti和1Cr18Ni9Ti12M02Ti和316不锈钢等，用于输送中性和有腐蚀性的液体，介质最高温度100℃。
我公司的产品与其他单位生产的IS型泵的区别是：泵的进口压力可达1.6MPa,泵体泵盖静压力试验为2.4MPa。
[性能表]：
|
Ty
|
Im
|
Q
(m3/h)
|
H
(m)
|
n
(r/min)
|
E
(%)
|
(NPSH)
r
(m)
|
N
(Kw)
|
M/Kw
|
DR
(mm)
|
DC
(mm)
|
W
(Kg)
|
|
50-32-125
|
O
|
75
12.5
15
|
22
20
18.5
|
2900
|
47
60
60
|
2.0
2.0
2.5
|
0.96
1.13
1.26
|
90L-2/2.2
|
50
|
40
|
95
|
|
A
|
7.2
11.9
14.3
|
20.0
18.2
16.8
|
46
58
58
|
2.0
2.0
2.25
|
0.85
1.02
1.13
|
|
B
|
9.7
11.2
13.4
|
17.5
15.9
14.7
|
45
56
56
|
2.0
2.0
2.05
|
0.71
0.86
0.96
|
90S-2/1.5
|
90
|
|
C
|
6.2
10.4
12.5
|
15.2
13.8
12.8
|
44
54
54
|
2.0
2.0
2.0
|
0.59
0.72
0.80
|
802-2/1.1
|
82
|
|
50-32-125(J)
|
O
|
3.8
6.3
7.5
|
5.4
5.0
4.6
|
1450
|
43
54
55
|
2.0
2.0
2.5
|
0.13
0.16
0.17
|
801-4/0.55
|
50
|
40
|
83
|
|
Ty
|
Im
|
Q
(m³/h)
|
H
(m)
|
n
(r/min)
|
E
(%)
|
（NPSH）
r
(m)
|
N
(kw)
|
M/Kw
|
DR
(mm)
|
DC
(mm)
|
W
(kg)
|
|
50-32-125(J)
|
A
|
3.6
6.0
7.2
|
4.9
4.6
4.2
|
1450
|
42
52
53
|
2.0
2.0
2.25
|
0.11
0.14
0.15
|
801-4/0.55
|
50
|
40
|
83
|
|
B
|
3.4
5.6
6.7
|
4.3
4.0
3.7
|
41
50
51
|
2.0
2.0
2.05
|
0.10
0.12
0.13
|
|
C
|
3.1
5.2
6.2
|
3.7
3.5
3.2
|
40
48
49
|
2.0
2.0
2.0
|
0.08
0.10
0.11
|
|
50-32-160
|
O
|
7.5
12.5
15
|
34.3
32
29.9
|
2900
|
44
54
56
|
2.0
2.0
2.5
|
1.59
2.02
2.16
|
100L-2/3
|
50
|
40
|
113
|
|
A
|
6.8
11.4
13.7
|
28.4
26.6
24.6
|
41.5
52
53
|
2.0
2.0
2.16
|
1.27
1.59
1.73
|
|
B
|
6.1
10.1
12.2
|
22.5
21.0
19.4
|
39
50
51
|
2.0
2.0
2.0
|
0.95
1.16
1.26
|
90L-2/2.2
|
105
|
|
C
|
5.4
9.0
10.8
|
17.9
16.7
15.4
|
36
45
45.5
|
2.0
2.0
2.0
|
0.73
0.91
1.0
|
90S-2/1.5
|
102
|
|
50-32-160(J)
|
O
|
3.8
6.3
7.5
|
8.5
8.0
7.5
|
1450
|
35
48
49
|
2.0
2.0
2.5
|
0.25
0.29
0.31
|
801-4/0.55
|
50
|
40
|
92
|
|
A
|
3.4
5.7
6.8
|
7.1
6.7
6.2
|
34
45.5
46
|
2.0
2.0
2.16
|
0.19
0.23
0.25
|
|
B
|
3.0
5.1
6.1
|
5.6
5.3
4.9
|
32
42
42.5
|
2.0
2.0
2.0
|
0.14
0.17
0.19
|
|
C
|
2.7
4.6
5.4
|
4.4
4.2
3.9
|
30
38
38.5
|
2.0
2.0
2.0
|
0.11
0.14
0.15
|
|
50-32-200
|
O
|
7.5
12.5
15
|
52.5
50
48
|
2900
|
38
48
51
|
2.0
2.0
2.5
|
2.82
3.54
3.95
|
132S1-2/5.5
|
50
|
40
|
152
|
|
A
|
7.3
12.1
14.6
|
49.4
47.0
45.1
|
37.5
47
50
|
2.0
2.0
2.3
|
2.61
3.30
3.58
|
|
B
|
7.0
11.7
14.0
|
45.3
43.2
41.5
|
37
46.2
49.2
|
2.0
2.0
2.15
|
2.33
2.96
3.20
|
112M-2/4
|
131
|
|
C
|
6.5
10.9
13.0
|
39.6
37.7
36.2
|
36
45.2
48.2
|
2.0
2.0
2.0
|
1.95
2.47
2.67
|
|
50-32-200(J)
|
O
|
3.8
6.3
7.5
|
13.1
12.5
12
|
1450
|
33
42
44
|
2.0
2.0
2.5
|
0.41
0.51
0.56
|
802-4/0.75
|
50
|
40
|
97
|
|
A
|
3.6
6.1
7.3
|
12.3
11.8
11.3
|
32.5
41.5
43.2
|
2.0
2.0
2.3
|
0.38
0.47
0.52
|
|
B
|
3.5
5.9
7.0
|
11.3
10.8
10.4
|
32
40.7
42.7
|
2.0
2.0
2.15
|
0.34
0.42
0.46
|
|
C
|
3.3
5.5
6.5
|
9.9
9.4
9.1
|
31
39.5
41.2
|
2.0
2.0
2.0
|
0.28
0.36
0.39
|
801-4/0.55
|
96
|
|
50-32-250
|
O
|
7.5
12.5
15
|
82
80
78.5
|
|
28.5
38
41
|
2.0
2.0
2.5
|
5.87
7.16
7.83
|
160M1-2/11
|
50
|
40
|
256
|
|
A
|
7.0
11.6
13.9
|
70.6
68.9
67.6
|
28
37.5
40
|
2.0
2.0
2.25
|
4.78
5.80
6.41
|
|
B
|
6.5
10.8
13.0
|
61.2
59.7
58.6
|
27.5
36.3
39
|
2.0
2.0
2.05
|
3.93
4.84
5.30
|
132S2-/7.5
|
205
|
|
C
|
6.0
10.0
12.0
|
52.5
51.2
50.2
|
27
35
37.5
|
2.0
2.0
2.0
|
3.18
3.98
4.38
|
132S1-2/5.5
|
199
|
|
50-32-250(J)
|
O
|
3.8
6.3
7.5
|
20.5
20
19.5
|
|
23
32
35
|
2.0
2.0
2.5
|
0.91
1.07
1.14
|
90L-4/1.5
|
50
|
40
|
158
|
|
A
|
3.5
5.9
7.0
|
17.7
17.2
16.8
|
22.1
31.2
34.2
|
2.0
2.0
2.25
|
0.76
0.88
0.93
|
|
B
|
3.2
5.4
6.5
|
15.3
14.9
14.6
|
21.5
30.5
33.5
|
2.0
2.0
2.05
|
0.63
0.73
0.77
|
|
C
|
3.0
5.0
6.0
|
13.1
12.8
12.5
|
21
29.5
32.5
|
2.0
2.0
2.0
|
0.51
0.60
0.63
|
90S-4/1.1
|
153
|
|
Ty
|
Im
|
Q
(m3/h)
|
H
(m)
|
n
(r/min)
|
E
(%)
|
(NPSH)
r
(m)
|
N
(Kw)
|
M/Kw
|
DR
(mm)
|
DC
(mm)
|
W
(Kg)
|
|
65-40-315
|
O
|
15
25
30
|
127
125
123
|
2900
|
28
40
44
|
2.5
2.5
3.0
|
18.5
21.3
22.8
|
200L1-2/30
|
65
|
40
|
417
|
|
A
|
14
23.3
28
|
111
109
109
|
28
39.5
43.5
|
2.5
2.5
2.75
|
15.0
17.5
18.8
|
180M-2/22
|
365
|
|
B
|
13.1
21.9
26.3
|
97.5
96.0
94.4
|
28
39
43
|
2.5
2.5
2.56
|
12.5
14.7
15.7
|
160L-2/18.5
|
360
|
|
C
|
12.1
20.2
26.3
|
83.2
81.9
80.6
|
28
38.5
42.5
|
2.5
2.5
2.5
|
9.83
11.7
12.5
|
160M2-2/15
|
298
|
|
65-40-315(J)
|
O
|
7.5
12.5
15
|
32.3
32.0
31.7
|
1450
|
25
37
41
|
2.5
2.5
3.0
|
2.63
2.94
3.16
|
112M-4/4
|
65
|
40
|
212
|
|
A
|
7.0
11.7
14.0
|
28.1
27.9
27.6
|
25
36.6
40.8
|
2.5
2.5
2.75
|
2.15
2.42
2.58
|
|
B
|
6.6
11.0
13.1
|
24.8
24.6
24.3
|
25
36
40.4
|
2.5
2.5
2.56
|
1.78
2.02
2.15
|
100L2-4/3
|
205
|
|
C
|
6.1
10.1
12.1
|
21.2
21.0
20.8
|
25
36
40.4
|
2.5
2.5
2.5
|
1.41
1.61
1.70
|
|
80-65-125
|
O
|
30
50
60
|
22.5
20
18
|
|
64
75
74
|
3.0
3.8
3.5
|
2.87
3.63
3.98
|
132S1-2/5.5
|
80
|
65
|
133
|
|
A
|
28.7
47.9
57.4
|
20.6
18.3
16.5
|
63
73
72.5
|
3.0
3.0
3.3
|
2.56
3.27
3.56
|
|
B
|
26.1
43.6
52.3
|
17.1
15.2
13.7
|
60.5
69.5
68.5
|
3.0
3.0
3.1
|
2.01
2.59
2.84
|
112M-2/4
|
124
|
|
C
|
23.1
38.6
46.3
|
13.4
11.9
10.7
|
58
65.5
64.5
|
3.0
3.0
3.0
|
1.45
1.91
2.09
|
100L-2/3
|
107
|
|
80-65-125(J)
|
O
|
15
25
30
|
5.6
5.0
4.5
|
|
55
71
72
|
2.5
2.5
3.0
|
0.42
0.48
0.51
|
802-4/0.75
|
80
|
65
|
84
|
|
A
|
14.4
23.9
28.7
|
5.1
4.6
4.1
|
54.5
70
71
|
2.5
2.5
2.8
|
0.37
0.43
0.45
|
|
B
|
13.1
21.8
26.1
|
4.3
3.8
3.4
|
53
66
67
|
2.5
2.5
2.55
|
0.29
0.34
0.36
|
801-4/0.55
|
83
|
|
C
|
11.6
19.3
23.1
|
3.3
3.0
2.7
|
51
62
63
|
2.5
2.5
2.5
|
0.21
0.25
0.27
|
|
Ty
|
Im
|
Q
(m3/h)
|
H
(m)
|
n
(r/min)
|
E
(%)
|
(NPSH)
r
(m)
|
N
(Kw)
|
M/Kw
|
DR
(mm)
|
DC
(mm)
|
W
(Kg)
|
|
80-65-160
|
O
|
30
50
60
|
36
32
29
|
|
61
73
72
|
2.5
2.5
3.0
|
4.82
5.97
6.59
|
132S2-2/7.5
|
80
|
65
|
155
|
|
A
|
28.2
46.9
56.3
|
31.7
28.2
25.5
|
60
71
70
|
2.5
2.5
2.8
|
4.05
5.07
5.59
|
|
B
|
25.9
43.2
51.9
|
26.9
23.9
21.7
|
59
67
66
|
2.5
2.5
2.6
|
3.21
4.20
4.63
|
132S1-2/5.5
|
149
|
|
C
|
24.1
40.1
48.2
|
23.2
20.6
18.7
|
57
64
63
|
2.5
2.5
2.5
|
2.67
3.52
3.89
|
|
65-50-125
|
O
|
15
25
30
|
21.8
20
18.5
|
|
58
69
68
|
2.0
2.5
3.0
|
1.54
1.97
2.22
|
100L-2/3
|
65
|
50
|
113
|
|
A
|
14.1
23.5
28.2
|
19.2
17.6
16.3
|
55
67
66
|
2.0
2.4
2.8
|
1.33
1.68
1.89
|
|
B
|
13.2
21.9
26.3
|
16.8
15.4
14.2
|
50.5
62
61
|
2.0
2.3
2.6
|
1.19
1.48
1.67
|
90L-2/2.2
|
103
|
|
C
|
11.3
18.9
22.6
|
12.4
11.4
10.5
|
43.5
53
52
|
2.0
2.15
2.4
|
0.88
1.10
1.25
|
|
65-50-125(J)
|
O
|
7.5
12.5
15
|
5.4
5.0
4.7
|
|
53
64
65
|
2.0
2.0
2.5
|
0.21
0.27
0.30
|
801-4/0.55
|
65
|
50
|
91
|
|
A
|
7.0
11.7
14.1
|
4.7
4.4
4.1
|
50.5
61.5
62
|
2.0
2.0
2.3
|
0.18
0.23
0.26
|
|
B
|
6.6
11.0
13.2
|
4.1
3.8
3.6
|
46.5
57
57.5
|
2.0
2.0
2.15
|
0.16
0.20
0.23
|
|
C
|
5.7
9.4
11.3
|
3.0
2.0
2.7
|
51.5
48
48.5
|
2.0
2.0
2.0
|
0.11
0.15
0.17
|
|
65-50-160
|
O
|
15
25
30
|
35
32
30
|
|
54
65
66
|
2.0
2.0
2.5
|
2.65
3.35
3.71
|
132S1-2/5.5
|
65
|
50
|
148
|
|
A
|
14.1
23.5
28.2
|
30.8
28.2
26.4
|
52.5
63
64
|
2.0
2.0
2.25
|
2.25
2.86
3.16
|
112M-2/4
|
130
|
|
B
|
13.0
21.6
25.9
|
26.1
23.9
22.4
|
49.5
58
49
|
2.0
2.0
2.05
|
1.86
2.42
2.68
|
|
C
|
12.0
20.1
24.1
|
22.5
20.6
19.3
|
46.5
55
55
|
2.0
2.0
2.0
|
1.58
2.05
2.30
|
100L-2/3
|
117
|
|
Ty
|
Im
|
Q
(m3/h)
|
H
(m)
|
n
(r/min)
|
E
(%)
|
(NPSH)
r
(m)
|
N
(Kw)
|
M/Kw
|
DR
(mm)
|
DC
(mm)
|
W
(Kg)
|
|
65-50-160(J)
|
O
|
7.5
12.5
15
|
8.8
8.0
7.2
|
1450
|
50
60
60
|
2.0
2.0
2.5
|
0.36
0.45
0.49
|
802-4/0.75
|
65
|
50
|
96
|
|
A
|
7.0
11.7
14.1
|
7.8
7.0
6.3
|
47
58
58
|
2.0
2.0
2.25
|
0.32
0.39
0.42
|
|
B
|
6.5
10.8
13.0
|
6.6
6.0
5.4
|
45.5
55
55
|
2.0
2.0
2.05
|
0.25
0.32
0.35
|
801-4/0.55
|
95
|
|
C
|
6.0
10.0
12.0
|
5.7
5.2
4.6
|
53
52
52
|
2.0
2.0
2.0
|
0.22
0.27
0.29
|
|
65-40-200
|
O
|
15
25
30
|
53
50
47
|
2900
|
49
60
61
|
2.0
2.0
2.5
|
4.42
5.67
6.29
|
132S2-2/7.5
|
65
|
40
|
170
|
|
A
|
14.3
23.8
28.5
|
47.8
45.1
42.4
|
48.7
59.5
60.5
|
2.0
2.0
2.3
|
3.81
4.91
5.44
|
170
|
|
B
|
13.5
22.5
27.0
|
42.9
40.5
38.1
|
48.3
59
60
|
2.0
2.0
2.1
|
3.27
4.21
4.67
|
132S1-2/7.5
|
164
|
|
C
|
12.8
21.3
25.5
|
38.3
36.1
34.0
|
48
57.5
59
|
2.0
2.0
2.0
|
2.77
3.64
4.00
|
|
65-40-200(J)
|
O
|
7.5
12.5
15
|
13.2
12.5
11.8
|
1450
|
43
55
57
|
2.0
2.0
2.5
|
0.63
0.77
0.85
|
90S-4/1.1
|
65
|
40
|
119
|
|
A
|
7.1
11.9
14.3
|
11.9
11.3
10.7
|
43
55
57
|
2.0
2.4
2.8
|
0.54
0.66
0.73
|
|
B
|
6.8
11.3
13.5
|
10.7
10.1
9.6
|
43
55
57
|
2.0
2.0
2.3
|
0.46
0.59
0.62
|
|
C
|
6.4
10.6
12.8
|
9.5
9.0
8.5
|
43
55
57
|
2.0
2.0
2.1
|
0.39
0.48
0.52
|
802-4/0.75
|
111
|
|
65-40-250
|
O
|
15
25
30
|
82
80
78
|
2900
|
37
50
53
|
2.0
2.0
2.5
|
9.05
10.9
12.0
|
160M2-2/15
|
65
|
40
|
278
|
|
A
|
14.1
23.4
28.1
|
72.0
70.2
68.5
|
36.5
49
52.4
|
2.0
2.0
2.26
|
7.55
9.14
10.0
|
|
B
|
13.1
21.9
26.2
|
62.7
61.1
59.6
|
36
47.8
51
|
2.0
2.0
2.07
|
6.21
7.64
8.34
|
160M1-2/11
|
270
|
|
C
|
12.3
20.5
24.6
|
55.0
53.7
52.3
|
35.5
46.3
49.7
|
2.0
2.0
2.0
|
5.18
6.46
7.04
|
|
65-40-250（J)
|
O
|
7.5
12.5
15
|
21
20
19.4
|
1450
|
35
46
48
|
2.0
2.0
2.5
|
1.23
1.48
1.65
|
100L1-4/2.2
|
65
|
40
|
178
|
|
A
|
7.0
11.7
14.1
|
18.4
17.6
17.0
|
35
44.8
47
|
2.0
2.0
2.26
|
1.01
1.25
1.39
|
|
B
|
6.6
10.9
13.1
|
16.0
15.3
14.8
|
34.8
43.8
46.2
|
2.0
2.0
2.07
|
0.82
1.04
1.15
|
90L-4/1.5
|
170
|
|
C
|
6.1
10.2
12.3
|
14.1
13.4
13.0
|
34.5
43
45
|
2.0
2.0
2.0
|
0.68
0.87
0.97
|
|
Ty
|
Im
|
Q
(m3/h)
|
H
(m)
|
n
(r/min)
|
E
(%)
|
(NPSH)
r
(m)
|
N
(Kw)
|
M/Kw
|
DR
(mm)
|
DC
(mm)
|
W
(Kg)
|
|
80-65-160(J)
|
O
|
15
25
30
|
9
8
7.2
|
1450
|
55
69
68
|
2.5
2.5
3.0
|
0.67
0.79
0.86
|
90L-4/1.5
|
80
|
65
|
108
|
|
A
|
14.1
23.5
28.2
|
7.9
7.0
6.3
|
53.5
66.5
65.5
|
2.5
2.5
2.8
|
0.57
0.68
0.74
|
90S-4/1.1
|
105
|
|
B
|
|
6.7
6.0
5.4
|
51
63
62
|
2.5
2.5
2.6
|
0.47
0.56
0.61
|
|
C
|
12.0
20.1
24.1
|
5.8
5.2
4.6
|
48
60
59
|
2.5
2.5
2.5
|
0.40
0.47
0.52
|
802-4/0.75
|
95
|
|
80-50-200
|
O
|
30
50
60
|
53
50
47
|
2900
|
55
69
71
|
2.5
2.5
3.0
|
7.87
9.87
10.8
|
160M2-2/15
|
80
|
50
|
230
|
|
A
|
28.0
46.9
55.9
|
46.0
43.4
40.8
|
54.5
67
69.5
|
2.5
2.5
2.7
|
6.42
8.21
1.20
|
160M1-2/11
|
222
|
|
B
|
25.9
42.7
51.2
|
38.6
36.4
34.2
|
53.5
66
68.5
|
2.5
2.5
2.53
|
5.02
6.40
6.96
|
|
C
|
23.5
39.2
47.1
|
32.6
30.8
28.9
|
52.5
64.5
68
|
2.5
2.5
2.5
|
5.02
5.09
5.45
|
132S2-2/7.5
|
160
|
|
80-50-200(J)
|
O
|
15
25
30
|
13.2
12.5
11.8
|
1450
|
51
65
67
|
2.5
2.5
3.0
|
3.98
1.31
1.44
|
100L1-4/2.2
|
80
|
50
|
120
|
|
A
|
14.0
23.3
27.9
|
11.5
10.9
10.2
|
50.6
63
65
|
2.5
2.5
2.7
|
1.06
1.09
1.20
|
90L-4/1.5
|
114
|
|
B
|
12.8
21.3
25.6
|
9.6
9.1
8.6
|
49.4
61.5
62.5
|
2.5
2.5
2.53
|
0.68
0.86
0.96
|
|
C
|
11.8
19.6
23.5
|
8.1
7.7
7.3
|
48
60.5
61.5
|
2.5
2.5
2.5
|
0.54
0.68
0.78
|
90S-4/1.1
|
109
|
|
80-50-250
|
O
|
30
50
60
|
84
80
75
|
2900
|
52
63
64
|
2.5
2.5
3.0
|
13.2
17.3
19.2
|
180M-2/22
|
80
|
50
|
335
|
|
A
|
28.3
47.2
56.6
|
74.9
71.3
66.8
|
52.3
62.6
64
|
2.5
2.5
2.8
|
11.0
14.6
16.1
|
|
B
|
26.6
44.4
53.3
|
66.2
63.1
59.1
|
52.7
62.2
64
|
2.5
2.5
2.6
|
9.1
12.3
13.4
|
160L-2/18.5
|
305
|
|
C
|
23.8
39.6
47.5
|
52.7
50.2
47.0
|
53
60.8
63.5
|
2.5
2.5
2.5
|
6.43
8.90
9.59
|
160M2-2/15
|
270
|
|
80-50-250(J)
|
O
|
15
25
30
|
21
20
18.8
|
1450
|
79
60
61
|
2.5
2.5
3.0
|
1.75
2.27
2.52
|
100L2-4/3
|
80
|
50
|
175
|
|
A
|
14.2
23.6
28.3
|
18.7
17.8
16.8
|
49
58.7
59.7
|
2.5
2.5
2.8
|
1.47
1.95
2.16
|
|
B
|
13.3
22.2
26.6
|
16.6
15.8
14.8
|
49
58
59.5
|
2.5
2.5
2.6
|
1.23
1.61
1.81
|
100L1-4/2.2
|
171
|
|
C
|
11.9
19.8
23.8
|
13.2
12.6
11.8
|
49
57
59
|
2.5
2.5
2.5
|
0.87
1.19
1.29
|
|
|
Ty
|
Im
|
Q
(m3/h)
|
H
(m)
|
n
(r/min)
|
E
(%)
|
(NPSH)
r
(m)
|
N
(Kw)
|
M/Kw
|
DR
(mm)
|
DC
(mm)
|
W
(Kg)
|
|
80-50-315
|
O
|
30
50
60
|
158
125
123
|
2900
|
41
54
57
|
2.5
2.5
3.0
|
25.5
31.5
35.3
|
200L2-2/37
|
80
|
50
|
430
|
|
A
|
28.0
46.7
56.0
|
112
109
107
|
41
53.5
56.7
|
2.5
2.5
2.7
|
20.7
25.9
28.8
|
|
B
|
26.3
43.8
52.6
|
98.3
94.0
94.4
|
41
54
57
|
2.5
2.5
2.63
|
17.2
21.6
24.0
|
200L1-2/30
|
416
|
|
C
|
24.3
40.5
48.6
|
83.9
81.9
80.6
|
41
52.5
56
|
2.5
2.5
2.5
|
13.5
17.2
19.3
|
180M-2/22
|
363
|
|
80-50-315(J)
|
O
|
15
25
30
|
32.5
32
31.5
|
1450
|
39
52
56
|
2.5
2.5
3.0
|
3.4
4.19
4.6
|
132S-4/4.5
|
80
|
50
|
237
|
|
A
|
14.0
23.3
28.0
|
28.3
27.9
27.4
|
39
51.7
55.8
|
2.5
2.5
2.7
|
2.77
3.43
3.75
|
|
B
|
13.1
21.9
26.3
|
25.0
24.6
24.2
|
39
51.4
55.6
|
2.5
2.5
2.63
|
2.29
2.85
3.11
|
112M-4/4
|
207
|
|
C
|
12.1
20.2
24.3
|
21.3
21.0
20.6
|
39
51.1
55.4
|
2.5
2.5
2.5
|
1.81
2.26
2.46
|
|
100-80-125
|
O
|
60
100
120
|
24
20
16.5
|
2900
|
67
78
74
|
4.0
4.5
5.0
|
5.86
7.0
7.28
|
160M1-2/11
|
100
|
80
|
210
|
|
A
|
56.6
94.2
113
|
21.3
17.8
14.7
|
63.5
73
70
|
4.0
4.4
4.8
|
5.17
6.25
6.45
|
|
B
|
53.5
89.2
107
|
19.1
15.9
13.1
|
60
70
65
|
4.0
4.3
4.65
|
4.64
5.52
5.89
|
132S2-2/7.5
|
157
|
|
C
|
47.5
79.1
95.0
|
15.0
12.5
10.3
|
54.5
64
62.5
|
4.0
4.2
4.4
|
3.57
4.22
4.28
|
132S1-2/5.5
|
151
|
|
100-80-125(J)
|
O
|
30
50
60
|
6
5
4
|
1450
|
64
75
71
|
2.5
2.5
3.0
|
0.77
0.91
0.92
|
90L-4/1.5
|
100
|
80
|
111
|
|
A
|
28.3
47.1
56.6
|
5.3
4.4
3.6
|
61
72
66
|
2.5
2.5
2.8
|
0.67
0.79
0.83
|
|
B
|
26.8
44.6
53.5
|
4.8
4.0
3.2
|
57
66
65
|
2.5
2.5
2.6
|
0.61
0.73
0.73
|
90S-4/1.1
|
106
|
|
C
|
23.7
39.6
47.5
|
3.8
3.1
2.5
|
48
61
59
|
2.5
2.5
2.5
|
0.51
0.55
0.55
|
|
Ty
|
Im
|
Q
(m3/h)
|
H
(m)
|
n
(r/min)
|
E
(%)
|
(NPSH)
r
(m)
|
N
(Kw)
|
M/Kw
|
DR
(mm)
|
DC
(mm)
|
W
(Kg)
|
|
100-80-160
|
O
|
60
100
120
|
36
32
28
|
2900
|
70
78
75
|
3.5
4.0
5.0
|
8.4
11.2
12.2
|
160M2-2/15
|
100
|
80
|
250
|
|
A
|
56.9
94.8
114
|
32.4
28.8
25.2
|
69.7
77.5
74.2
|
3.5
3.97
4.5
|
7.19
9.58
10.5
|
|
B
|
53.4
89.0
107
|
28.5
25.4
22.2
|
69.3
76.6
73.8
|
3.5
3.77
4.1
|
5.99
8.02
8.75
|
160M1-2/11
|
242
|
|
C
|
50.6
84.4
101
|
25.6
22.8
19.9
|
69
76
73.5
|
3.5
3.65
3.93
|
5.12
6.89
7.48
|
|
100-80-160(J)
|
O
|
30
50
60
|
9.2
8.0
6.8
|
1450
|
67
75
71
|
2.0
2.5
3.5
|
1.12
1.45
1.57
|
100L1-4/2.2
|
100
|
80
|
150
|
|
A
|
28.4
47.4
56.9
|
8.3
7.2
6.1
|
66.5
76
70
|
2.0
2.347
2.9
|
0.96
1.22
1.35
|
|
B
|
26.7
44.5
53.4
|
7.3
6.3
5.1
|
66
73.3
69
|
2.0
2.25
2.6
|
0.8
1.05
1.14
|
90L-4/1.5
|
141
|
|
C
|
25.3
42.2
50.6
|
6.6
5.7
4.8
|
65.5
73
68.5
|
2.0
2.17
2.4
|
0.69
0.90
0.97
|
|
100-65-200
|
O
|
60
100
120
|
54
50
47
|
2900
|
65
76
77
|
3.0
3.6
4.8
|
13.6
17.9
19.9
|
180M2-2/22
|
100
|
65
|
335
|
|
A
|
56.4
94.1
113
|
47.8
44.2
41.6
|
65
76.5
77
|
3.0
3.45
4.3
|
11.3
14.8
46.6
|
|
B
|
53.5
89.1
107
|
42.9
39.7
37.3
|
65
74.5
76
|
3.0
3.35
3.6
|
9.6
12.9
14.3
|
160L-2/18.5
|
303
|
|
C
|
50.5
84.2
101
|
38.3
35.4
33.3
|
65
73
75
|
3.0
3.25
3.6
|
8.09
11.1
12.2
|
160M2-2/15
|
270
|
|
100-65-200(J)
|
O
|
30
50
60
|
13.5
12.5
11.8
|
1450
|
60
73
74
|
2.0
2.0
2.5
|
1.84
2.33
2.61
|
112M-4/4
|
100
|
65
|
181
|
|
A
|
28.2
47.0
56.4
|
11.9
11.1
10.4
|
60
72.7
73.7
|
2.0
2.0
2.29
|
1.53
1.95
2.18
|
100L2-4/3
|
177
|
|
B
|
26.7
44.6
53.5
|
10.7
9.9
9.4
|
60
72.3
73.3
|
2.0
2.0
2.15
|
1.30
1.67
1.86
|
|
C
|
25.3
42.1
50.5
|
9.6
8.9
8.4
|
60
72
73
|
2.0
2.0
2.0
|
1.10
1.41
1.57
|
100L1-4/2.2
|
173
|
|
Ty
|
Im
|
Q
(m3/h)
|
H
(m)
|
n
(r/min)
|
E
(%)
|
(NPSH)
r
(m)
|
N
(Kw)
|
M/Kw
|
DR
(mm)
|
DC
(mm)
|
W
(Kg)
|
|
100-65-250
|
O
|
56.0
93.3
112
|
80
87
74.5
|
2900
|
61
72
73
|
3.5
3.8
4.8
|
19.4
25.6
28.1
|
200L2-2/37
|
100
|
65
|
440
|
|
A
|
60
100
120
|
75.8
69.7
64.9
|
59.5
69.3
70.5
|
3.5
3.7
4.35
|
23.4
30.3
33.3
|
|
B
|
52.2
87.1
104
|
65.9
60.6
56.5
|
56.5
66.1
67
|
3.5
3.6
4.0
|
16.6
21.8
24.0
|
200L1-2/30
|
425
|
|
C
|
48.5
80.8
96.6
|
56.8
52.2
48.6
|
53
62.8
67
|
3.5
3.5
3.75
|
14.1
18.3
20.1
|
|
100-65-250(J)
|
O
|
30
50
60
|
21.3
20
19
|
1450
|
55
68
70
|
2.0
2.0
2.5
|
3.16
4.00
4.44
|
132S-4/5.5
|
100
|
65
|
231
|
|
A
|
28.0
46.7
56.0
|
18.6
17.4
16.6
|
53
65.5
67.8
|
2.0
2.0
2.25
|
2.67
3.38
3.17
|
|
B
|
26.1
43.5
52.2
|
16.1
15.2
14.4
|
51
62
64.6
|
2.0
2.0
2.05
|
2.25
2.90
3.17
|
112M-4/4
|
203
|
|
C
|
24.2
40.4
48.5
|
13.9
13.1
124
|
49
58.5
60.6
|
2.0
2.0
2.0
|
1.87
2.45
2.0
|
|
100-65-315
|
O
|
60
100
120
|
133
125
118
|
2900
|
55
66
67
|
3.0
3.6
4.2
|
39.6
51.6
57.5
|
280S-2/75
|
100
|
65
|
824
|
|
A
|
56
93.3
112
|
116
109
103
|
55
65.2
66
|
3.6
3.45
3.95
|
32.1
42.5
47.5
|
250-2/55
|
683
|
|
B
|
52.5
87.6
105
|
102
96
90.6
|
55
64.5
65
|
3.0
3.32
3.70
|
26.6
35.5
39.9
|
225M-2/45
|
568
|
|
C
|
48.6
81.0
97.1
|
87.2
81.9
77.3
|
55
63
64
|
3.0
3.2
3.5
|
21.0
28.7
32.0
|
200L2-2/37
|
496
|
|
100-65-315(J)
|
O
|
30
50
60
|
34
32
30
|
1450
|
51
63
64
|
2.0
2.0
2.5
|
5.44
6.92
7.67
|
160M-4/11
|
100
|
65 |
353
|
|
A
|
28
46.7
56
|
29.6
27.9
26.1
|
51
62.8
63.3
|
2.0
2.0
2.10
|
3.66
4.67
5.30
|
|
B
|
26.3
43.8
52.6
|
26.1
24.6
23.0
|
51
62.7
62.2
|
2.0
2.0
2.10
|
3.66
4.67
5.30
|
132M-4/7.5
|
300
|
|
C
|
24.3
40.5
48.6
|
22.3
21.0
19.7
|
51
61.5
61.2
|
2.0
2.0
2.0
|
2.89
3.76
4.25
|
132S-4/5.5
|
286
|
|
125-80-160
|
Z
|
105
174
209
|
42.8
38
33.3
|
2900
|
72
80
77
|
5.6
|
16.9
22.6
24.6
|
200L1-2/30
|
125
|
80
|
386
|
|
O
|
96
160
192
|
36
32
28
|
72
80
77
|
5.6
|
13.1
17.5
19.0
|
180M-2/22
|
326
|
|
A
|
98.8
150
180
|
31.5
28
24.5
|
70
78
75
|
5.6
|
11.0
14.7
16.0
|
160L-2/18.5
|
285
|
|
B
|
83.1
139
166
|
27
24
21
|
68
76
73
|
5.6
|
8.99
11.9
13.0
|
160M-2/15
|
262
|
|
Ty
|
Im
|
Q
(m3/h)
|
H
(m)
|
n
(r/min)
|
E
(%)
|
(NPSH)
r
(m)
|
N
(Kw)
|
M/Kw
|
DR
(mm)
|
DC
(mm)
|
W
(Kg)
|
|
125-80-160(J)
|
Z
|
52.3
87.2
105
|
10.7
9.5
8.31
|
1450
|
69
77
74
|
2.5
|
2.21
2.93
3.20
|
112M-4/4
|
125
|
80
|
174
|
|
O
|
48
80
96
|
9
8
7
|
69
77
74
|
2.5
|
1.71
2.26
2.47
|
100L2-4/3
|
170
|
|
A
|
44.9
74.8
89.8
|
7.9
7
6.1
|
67
75
72
|
2.5
|
1.44
1.90
2.08
|
100L1-4/2.2
|
165
|
|
B
|
41.6
69.3
83.1
|
6.8
6
5.3
|
65
73
70
|
2.5
|
1.18
1.55
1.70
|
|
125-80-200
|
Z
|
105
175
210
|
66
60
55.2
|
2900
|
66
80
78
|
5.2
|
28.6
35.8
40.5
|
225M-2/45
|
125
|
80
|
500
|
|
O
|
96
160
192
|
55
50
46
|
66
80
78
|
5.2
|
21.8
27.2
30.8
|
200L2-2/37
|
430
|
|
A
|
90.1
150
180
|
48.4
44
40.5
|
65
79
77
|
5.2
|
18.3
22.8
25.3
|
200L1-2/30
|
415
|
|
B
|
83.6
139
167
|
41.8
38
35.0
|
64
78
76
|
5.2
|
14.9
18.5
21.0
|
180-2/22
|
345
|
|
125-80-200(J)
|
Z
|
52.6
87.6
105
|
16.5
15
13.8
|
1450
|
63
77
75
|
2.5
|
3.75
4.65
5.27
|
132S-4/5.5
|
125
|
80
|
230
|
|
O
|
48
80
96
|
13.6
12.5
11.5
|
63
77
75
|
2.5
|
2.85
3.54
4.0
|
112M-4/4
|
200
|
|
A
|
45.0
75.1
90.1
|
12.1
11
10.1
|
62
76
74
|
2.5
|
2.39
2.96
3.35
|
|
B
|
41.9
69.7
83.7
|
10.5
9.5
8.7
|
61
75
73
|
2.5
|
1.95
2.41
2.73
|
100L2-4/3
|
190
|
|
Ty
|
Im
|
Q
(m3/h)
|
H
(m)
|
n
(r/min)
|
E
(%)
|
(NPSH)
r
(m)
|
N
(Kw)
|
M/Kw
|
DR
(mm)
|
DC
(mm)
|
W
(Kg)
|
|
125-80-250
|
Z
|
103
172
206
|
100
92
84
|
2900
|
65
77
74
|
4.8
|
43.2
55.8
63.6
|
280S-2/75
|
125
|
80 |
875
|
|
O
|
96
160
192
|
87
80
73
|
65
77
74
|
4.8
|
35.0
45.3
51.6
|
250M-2/55
|
860
|
|
A
|
89.8
150
180
|
76.1
70
63.9
|
64
76
73
|
4.8
|
29.1
37.5
42.8
|
225M-2/45
|
530
|
|
B
|
83.1
139
166
|
65.3
60
54.8
|
63
75
72
|
4.8
|
23.5
30.2
34.4
|
200L2-2/37
|
455
|
|
125-80-250(J)
|
Z
|
51.5
85.8
103
|
25
23
21.3
|
1450
|
62
74
71
|
2.2
|
5.66
7.26
8.40
|
160M-4/11
|
125
|
80
|
315
|
|
O
|
48
80
96
|
21.8
20
18.3
|
62
74
71
|
2.2
|
4.59
5.89
6.72
|
132M-4/7.5
|
260
|
|
A
|
44.9
47.8
89.9
|
19.0
17.5
16.0
|
61
73
70
|
2.2
|
3.81
4.89
5.58
|
132S-4/5.5
|
245
|
|
B
|
41.6
69.3
83.1
|
16.3
15.0
13.7
|
60
72
69
|
2.2
|
3.08
3.93
4.49
|
|
125-80-315
|
Z
|
100
167
200
|
145
136
129
|
2900
|
58
73
73
|
4.5
|
68.0
84.7
96.7
|
315S-2/110
|
125
|
80
|
1290
|
|
O
|
96
160
192
|
133
125
119
|
58
73
73
|
4.5
|
60.0
74.6
85.2
|
280M-2/90
|
910
|
|
A
|
91.7
153
183
|
121
114
109
|
57
72
72
|
4.5
|
53.1
65.9
75.3
|
280S-2/75
|
815
|
|
B
|
87.1
145
174
|
110
103
98.1
|
56
71
71
|
4.5
|
46.4
57.4
65.6
|
|
C
|
82.4
137
165
|
97.9
92
87.6
|
55
70
70
|
4.5
|
39.9
49.1
56.1
|
|
125-80-315(J)
|
Z
|
49.5
82.5
99.0
|
35.6
34
31.9
|
1450
|
55
70
70
|
2.1
|
8.72
10.9
12.3
|
160L-4/15
|
125
|
80
|
390
|
|
O
|
48
80
96
|
33.5
32
30
|
55
70
70
|
2.1
|
7.96
9.96
11.2
|
|
A
|
45.3
75.5
90.6
|
29.8
28.5
26.7
|
54
69
69
|
2.1
|
6.82
8.49
9.55
|
160M-4/11
|
370
|
|
B
|
43.1
71.8
86.1
|
27.0
25.8
24.1
|
53
68
68
|
2.1
|
5.97
7.40
8.33
|
|
C
|
40.7
67.8
81.4
|
24.1
23
21.6
|
52
67
67
|
2.1
|
5.13
6.34
7.13
|
132M-4/7.5
|
315
|
|
|
Ty
|
Im
|
Q
(m3/h)
|
H
(m)
|
n
(r/min)
|
E
(%)
|
(NPSH)
r
(m)
|
N
(Kw)
|
M/Kw
|
DR
(mm)
|
DC
(mm)
|
W
(Kg)
|
|
125-80-400
|
Z
|
52.6
87.6
105
|
63.6
60
55.2
|
1450
|
51
63
63
|
2.0
|
17.7
22.7
25.1
|
200L-4/30
|
125
|
80
|
575
|
|
O
|
48
80
96
|
53
50
49
|
51
63
63
|
2.0
|
13.6
17.3
19.1
|
180L-4/22
|
500
|
|
A
|
45.0
75.1
90.1
|
46.6
44
40.5
|
50
62
62
|
2.0
|
11.4
14.5
16.0
|
180M-4/18.5
|
490
|
|
B
|
41.9
69.7
83.7
|
40.3
38
35.0
|
49
61
61
|
2.0
|
9.37
11.8
13.1
|
160L-4/15
|
450
|
|
125-100-200
|
O
|
120
200
240
|
57.5
50
44.5
|
2900
|
67
81
80
|
4.5
4.5
5.0
|
28.0
33.6
36.4
|
225M-2/45
|
125
|
100
|
500
|
|
A
|
111
185
222
|
49.3
42.9
38.2
|
64.5
78
77
|
4.5
4.5
4.7
|
23.1
27.7
30.0
|
200L2-2/37
|
435
|
|
B
|
103
172
207
|
42.6
37.1
33.0
|
62.5
75
74
|
4.5
4.5
4.55
|
19.2
23.2
25.1
|
200L1-2/30
|
420
|
|
C
|
94.4
157
189
|
35.6
31.0
27.6
|
60
71
70
|
4.5
4.5
4.5
|
15.3
18.7
20.3
|
|
125-100-200(J)
|
O
|
60
100
120
|
14.5
12.5
11.0
|
1450
|
62
76
75
|
2.5
2.5
3.0
|
3.83
4.48
4.76
|
132M-4/7.5
|
|
|
227
|
|
A
|
55.6
92.6
111
|
12.4
10.7
9.4
|
61
73.5
73
|
2.5
2.5
2.75
|
3.08
3.68
3.91
|
132S-4/5.5
|
214
|
|
B
|
51.7
86.1
103
|
10.8
9.3
8.2
|
58
70
69
|
2.5
2.5
2.55
|
2.61
3.11
3.33
|
|
C
|
47.2
78.7
94.4
|
9.0
7.7
6.8
|
55
66
66
|
2.5
2.5
2.5
|
2.10
2.51
2.66
|
112M-4/4
|
200
|
|
Ty
|
Im
|
Q
(m3/h)
|
H
(m)
|
n
(r/min)
|
E
(%)
|
(NPSH)
r
(m)
|
N
(Kw)
|
M/Kw
|
DR
(mm)
|
DC
(mm)
|
W
(Kg)
|
|
125-100-250
|
O
|
120
200
240
|
87
80
72
|
2900
|
66
78
75
|
3.8
4.2
5.0
|
43.0
55.9
62.8
|
280S-2/75
|
125
|
100
|
817
|
|
A
|
112
200
240
|
87
80
72
|
66
78
75
|
3.8
4.2
5.0
|
43.0
55.9
62.8
|
|
B
|
104
174
209
|
65.9
60.6
54.6
|
66
78
73
|
3.8
3.0
4.4
|
28.4
36.9
42.5
|
250M-2/55
|
676
|
|
C
|
96.9
162
194
|
56.8
52.2
47
|
66
77.8
73
|
3.8
3.9
4.15
|
22.7
29.5
34.0
|
250M-2/45
|
560
|
|
125-100-250(J)
|
O
|
60
100
120
|
21.5
20
18.5
|
1450
|
63
76
77
|
2.5
2.5
3.0
|
5.59
7.17
7.84
|
160M-4/11
|
125
|
100
|
346
|
|
A
|
56
93.3
112
|
18.7
17.4
16.1
|
63
76
77
|
2.5
2.5
2.7
|
4.53
5.83
6.38
|
|
B
|
52.2
87.1
104
|
16.3
15.2
14.0
|
63
75.5
76.8
|
2.5
2.5
2.53
|
3.68
4.76
5.19
|
132M-4/7.5
|
292
|
|
C
|
48.5
80.8
96.9
|
14.0
13.1
12.1
|
63
75.2
76.5
|
2.5
2.5
2.5
|
2.94
3.82
4.17
|
132S-4/5.5
|
279
|
|
125-100-315
|
O
|
120
200
240
|
230
125
120
|
2900
|
60
75
77
|
50
4.5
4.0
|
72.1
90.8
102
|
315S-2/110
|
125
|
100
|
1290
|
|
A
|
112
187
225
|
116
110
105
|
59
73.3
75.1
|
4.9
4.7
4.4
|
60.4
76.4
85.9
|
|
B
|
104
174
209
|
100
94.8
91.0
|
58
70.8
73.1
|
4.3
4.5
4.0
|
48.8
63.5
70.8
|
280M-2/90
|
950
|
|
C
|
96.5
161
193
|
85.7
80.9
77.7
|
57
68.4
71.3
|
4.0
4.2
4.43
|
39.5
51.8
57.3
|
280S/2/75
|
845
|
|
Ty
|
Im
|
Q
(m3/h)
|
H
(m)
|
n
(r/min)
|
E
(%)
|
(NPSH)
r
(m)
|
N
(Kw)
|
M/Kw
|
DR
(mm)
|
DC
(mm)
|
W
(Kg)
|
|
125-100-315(J)
|
O
|
60
100
120
|
33.5
32
30.5
|
1450
|
58
73
74
|
2.5
2.5
3.0
|
9.4
11.9
13.5
|
160L-4/15
|
125
|
100
|
410
|
|
A
|
56.2
93.7
112
|
29.4
28.1
26.8
|
56
71.5
72.5
|
2.5
2.5
2.8
|
8.04
10.0
11.3
|
|
B
|
52.2
87.1
104
|
25.4
24.3
23.1
|
54
69.5
70.5
|
2.5
2.5
2.6
|
6.69
8.28
9.33
|
|
C
|
48.3
80.4
96.5
|
21.7
20.7
19.7
|
53
67
68
|
2.5
2.5
2.5
|
5.38
6.77
7.63
|
160M-4/11
|
373
|
|
125-100-400
|
O
|
60
100
120
|
52
50
48.5
|
1450
|
53
65
67
|
2.5
2.5
3.0
|
16.1
21.0
23.6
|
200L-4/30
|
125
|
100
|
700
|
|
A
|
56.4
93.9
113
|
45.9
44.1
42.8
|
53
65
66.8
|
2.5
2.5
2.75
|
13.3
17.4
19.7
|
180M-4/22
|
530
|
|
B
|
52.3
87.1
105
|
39.4
37.9
36.8
|
53
64.7
66.5
|
2.5
2.5
2.6
|
10.6
13.9
15.7
|
180M-4/18.5
|
520
|
|
C
|
48.6
81.0
97.2
|
34.1
32.8
31.8
|
53
64.5
66.2
|
2.5
2.5
2.5
|
8.52
11.2
12.7
|
160L-4/15
|
490
|
|
150-125-250
|
O
|
120
200
240
|
23.2
20
17.0
|
1450
|
71
81
78
|
3.0
3.0
3.5
|
10.7
13.5
14.3
|
180M-4/18.5
|
150
|
125
|
435
|
|
A
|
112
187
224
|
20.2
17.4
14.8
|
68.5
77
75
|
3.0
3.0
3.05
|
8.99
11.5
12.0
|
160L-4/15
|
400
|
|
B
|
103
171
205
|
16.9
14.6
12.4
|
64.5
75
71
|
3.0
3.0
3.0
|
7.33
9.06
9.76
|
|
C
|
95.4
159
191
|
14.7
12.6
10.7
|
61.5
71
68
|
2.5
2.5
3.0
|
6.19
7.70
8.20
|
160M-4/11
|
360
|
|
Ty
|
Im
|
Q
(m3/h)
|
H
(m)
|
n
(r/min)
|
E
(%)
|
(NPSH)
r
(m)
|
N
(Kw)
|
M/Kw
|
DR
(mm)
|
DC
(mm)
|
W
(Kg)
|
|
150-125-3015
|
O
|
120
200
240
|
34
32
29
|
1450
|
70
79
80
|
2.5
2.5
3.0
|
15.9
22.1
23.7
|
200L-4/30
|
150
|
125
|
605
|
|
A
|
112
186
224
|
29.6
27.8
25.2
|
69
78.7
79
|
2.5
2.5
2.7
|
13.0
18.0
19.4
|
180M-4/22
|
525
|
|
B
|
104
174
208
|
25.6
24.1
21.8
|
68
77.7
78
|
2.5
2.5
2.55
|
10.7
14.7
15.9
|
180M-4/18.5
|
517
|
|
C
|
96.4
161
193
|
21.7
20.6
18.7
|
77
76.7
77.2
|
2.5
2.5
2.5
|
8.59
11.8
12.7
|
160L-4/15
|
486
|
|
150-125-400
|
O
|
120
200
240
|
53
50
46
|
1450
|
62
75
74
|
2.0
2.8
3.5
|
27.9
36.3
40.6
|
225M-4/45
|
150
|
125
|
640
|
|
A
|
112
186
224
|
46.1
43.5
40.0
|
62
74.5
73
|
2.0
2.65
3.2
|
22.6
29.4
32.9
|
|
B
|
105
174
209
|
40.3
38.0
35.0
|
62
74
72.4
|
2.0
2.5
2.95
|
18.5
24.4
27.5
|
225S-4/37
|
610
|
|
C
|
96.5
161
193
|
34.3
32.3
29.7
|
62
72.8
71.5
|
2.0
2.35
2.7
|
14.5
19.4
21.7
|
200L-4/37
|
600
|
|
200-150-250
|
O
|
240
400
460
|
25
22
20
|
1450
|
69
82.5
82
|
3.0
4.5
4.0
|
23.7
29.1
30.6
|
225S-4/37
|
200
|
150
|
635
|
|
A
|
223
371
427
|
21.5
18.9
17.2
|
67
80
79.5
|
3.0
3.4
3.7
|
19.5
23.9
25.2
|
200L-4/30
|
625
|
|
B
|
207
345
397
|
18.6
16.4
14.9
|
65.4
77.5
77
|
3.0
3.3
3.5
|
16.0
19.8
20.9
|
|
C
|
190
317
365
|
15.7
13.8
12.6
|
64.4
77.5
77
|
3.0
3.2
3.35
|
12.7
16.2
17.0
|
180L-4/22
|
545
|
|
200-150-315
|
O
|
240
400
460
|
37
32
28.5
|
1450
|
70
82
80
|
3.0
3.5
4.0
|
34.6
42.5
44.6
|
225M-4/55
|
200
|
150
|
825
|
|
A
|
219
366
420
|
30.9
26.7
23.8
|
68
76.2
75
|
3.0
3.35
3.6
|
27.2
35.0
36.4
|
225M-4/45
|
730
|
|
B
|
198
330
380
|
25.2
21.8
19.4
|
61.5
69.3
69
|
3.0
3.2
3.4
|
22.1
28.3
29.1
|
225S-4/37
|
690
|
|
C
|
182
303
348
|
21.2
18.3
16.3
|
58
64
62
|
3.0
3.1
3.25
|
18.1
23.6
24.9
|
200L-4/30
|
685
|
|
200-150-400
|
O
|
240
400
460
|
55
50
45
|
1450
|
74
81
76
|
3.0
3.8
4.5
|
48.6
67.2
74.2
|
280M-4/90
|
200
|
150
|
1100
|
|
A
|
224
373
429
|
47.7
43.3
39.1
|
73
79.8
73.5
|
3.0
3.6
4.1
|
39.8
55.2
62.0
|
280S-4/75
|
1050
|
|
B
|
209
348
401
|
41.7
37.9
34.1
|
72
78.6
72
|
3.0
3.4
3.8
|
33.0
45.8
51.7
|
|
C
|
194
324
373
|
36.1
32.8
29.5
|
71
77
70.5
|
3.0
3.25
3.6
|
26.9
37.6
42.5
|
250M-4/55
|
865
|
|
|
|
|
